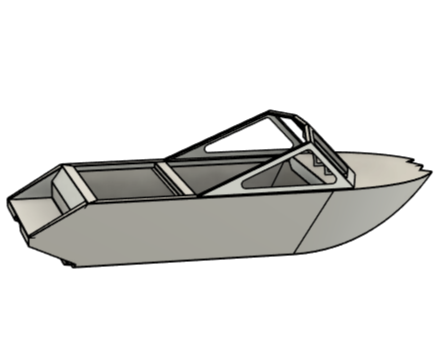

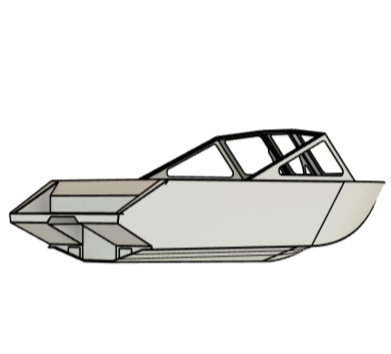

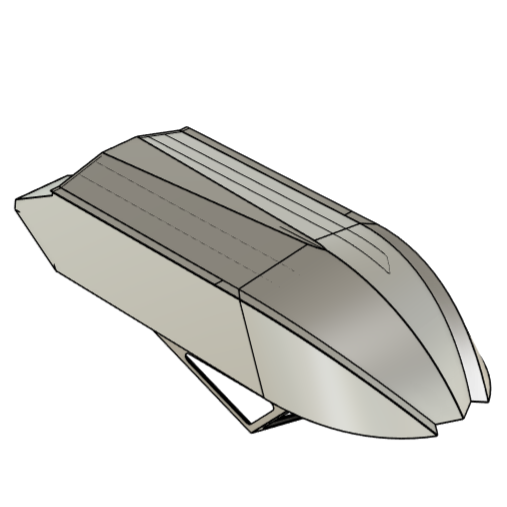

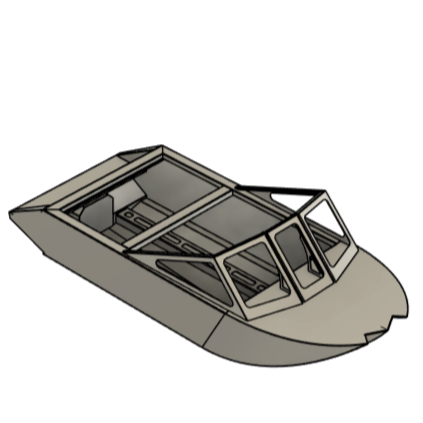

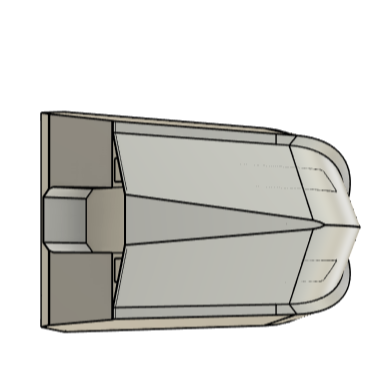

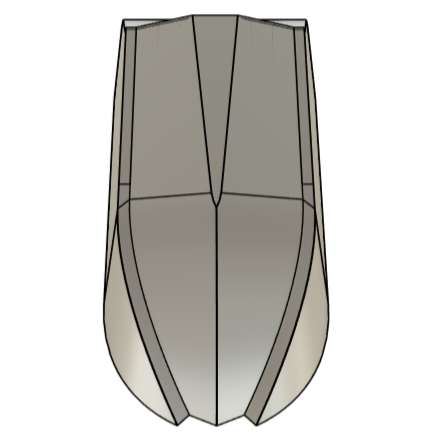

11' Madden Marine Mini Jet Boat (dxf files and cut plans only)

11’ Mini Jet boat cut and bend files

• All .dxf’s for hull construction with walk through windscreen included.

• Detailed hull assembly instructions (.pdfs) with recommended rigging components, and parts checklist included.

• Suitable for a wide variety of motor/pump combinations

Boat Specifications

• 11’ From transom to nose.

• 12’4” Overall length

• 60” Beam

• 52” Bottom

• .25” Bottom

• .1875” Transom Plate

• 1/8” Sides, bow, windscreen.

• 15° Deadrise (Turns like it’s on rails)

• 30” Deep (Extra dry ride)

• 88” Of usable floor space from transom to dash.

• Seats 2-3

• Bulkhead rail included (5 seat engine cover/bulkhead will work, but not recommended.

What’s Included

• All .dxf’s needed for cutting. (Assembly jigs included for ease of assembly)

• Bend info in the form of engineered .pdf drawings for all bend angles, and dimensions.

• Pre nested .dxf files. Toolpaths are the only thing needed to add.

• Individual .dxf files if different size materials work better for your application and with layered bend lines for CNC bending info.

• Parts checklist and part identifier diagrams

• Detailed .pdf’s of all assembly steps.

• Recommended rigging parts checklist, and part numbers for select parts.

  Material requirements

• 1 - 5×14 .25 Aluminum Sheet (5083 or 5052)

• 1 - 4×8 .1875 Aluminum Sheet (5083 or 5052)

• 1 - 5×14 .125 Aluminum (5052)

• 1 - 4×14 .125 Aluminum (5052)

• 1 - 5×10 .125 Aluminum (5052)
