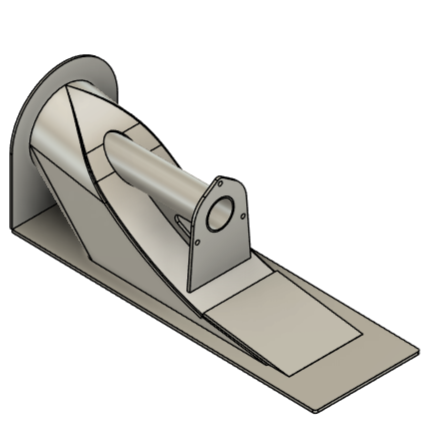

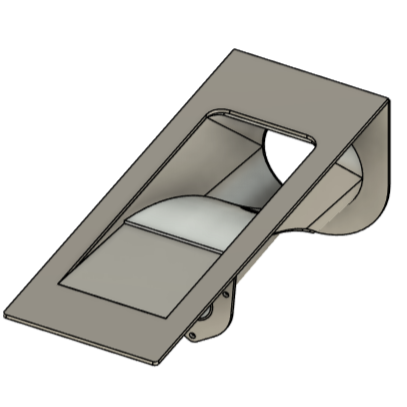

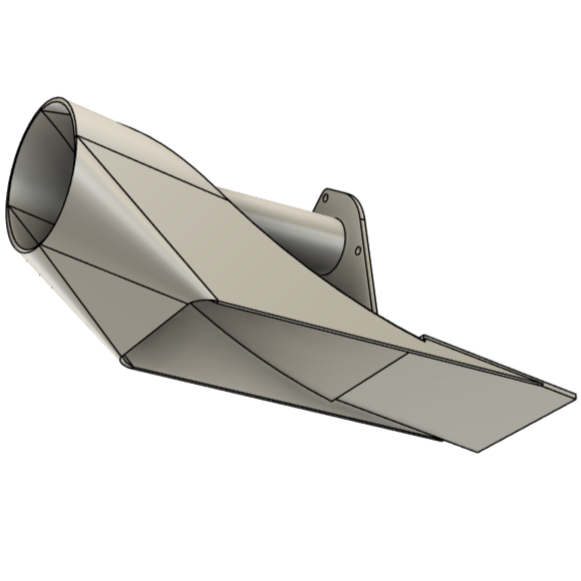

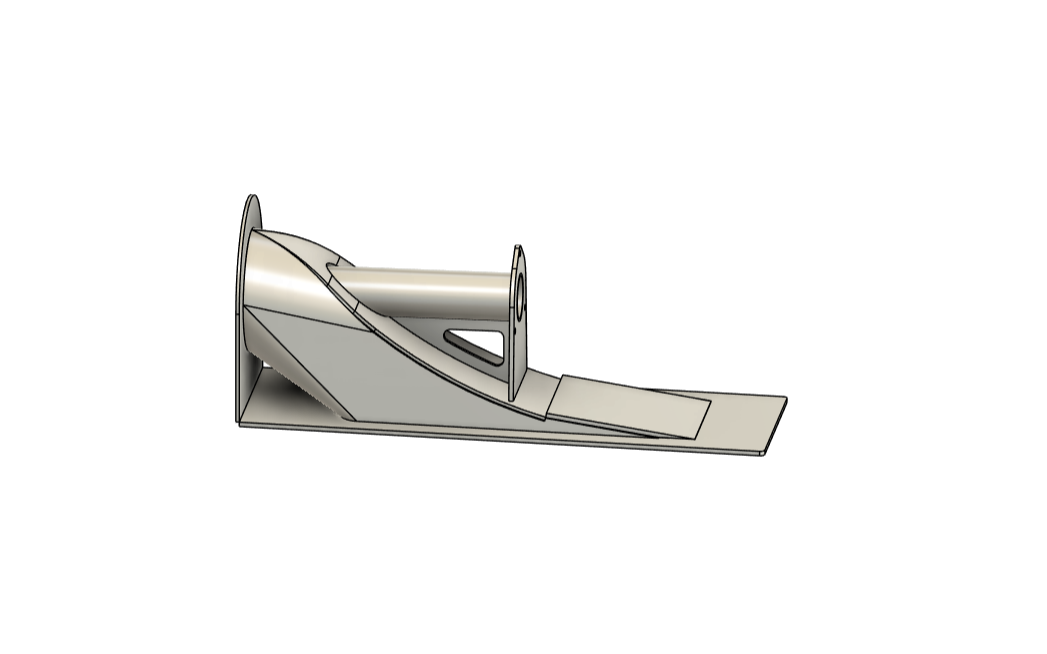

160MM Intake/Suction Housing ( .dxf files and cut plans only)

160 MM Intake / Suction housing cut and bend files.

• All .dxf’s and bend info included.

• Assembly instructions included.

• Enough oil pan clearance for all PWC engines, and a variety of car engines including the Honda K24/K20.

• .1875” Main body construction

• .25” Baseplate

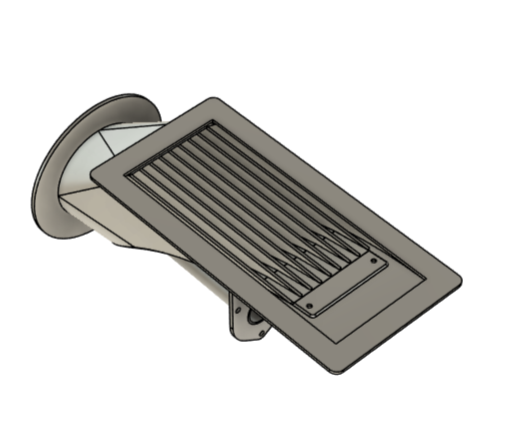

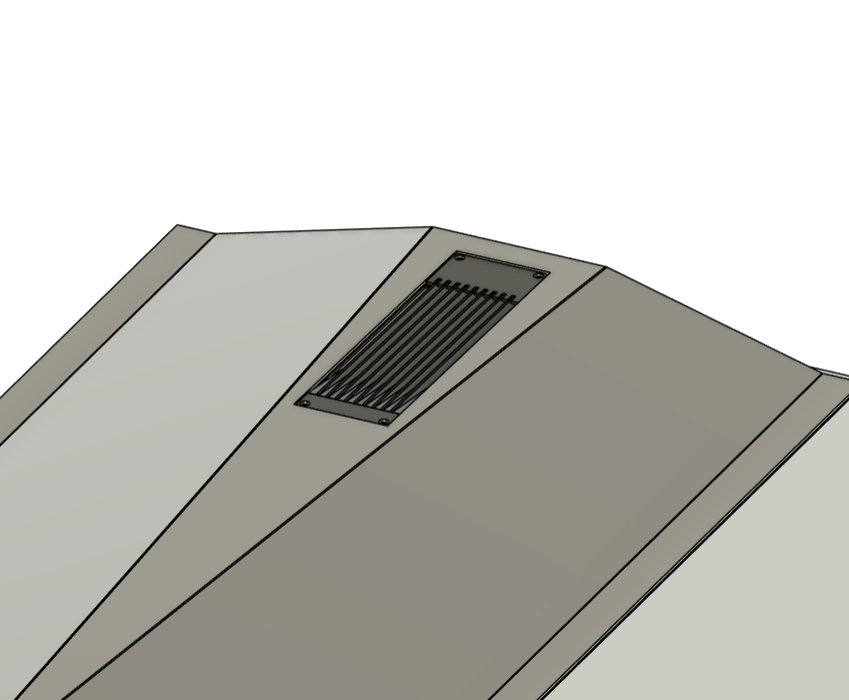

• Flush with hull .1875” steel intake grate

• Compatible with all off the shelf, premade pump adapter rings. (160 MM or 155 mm)

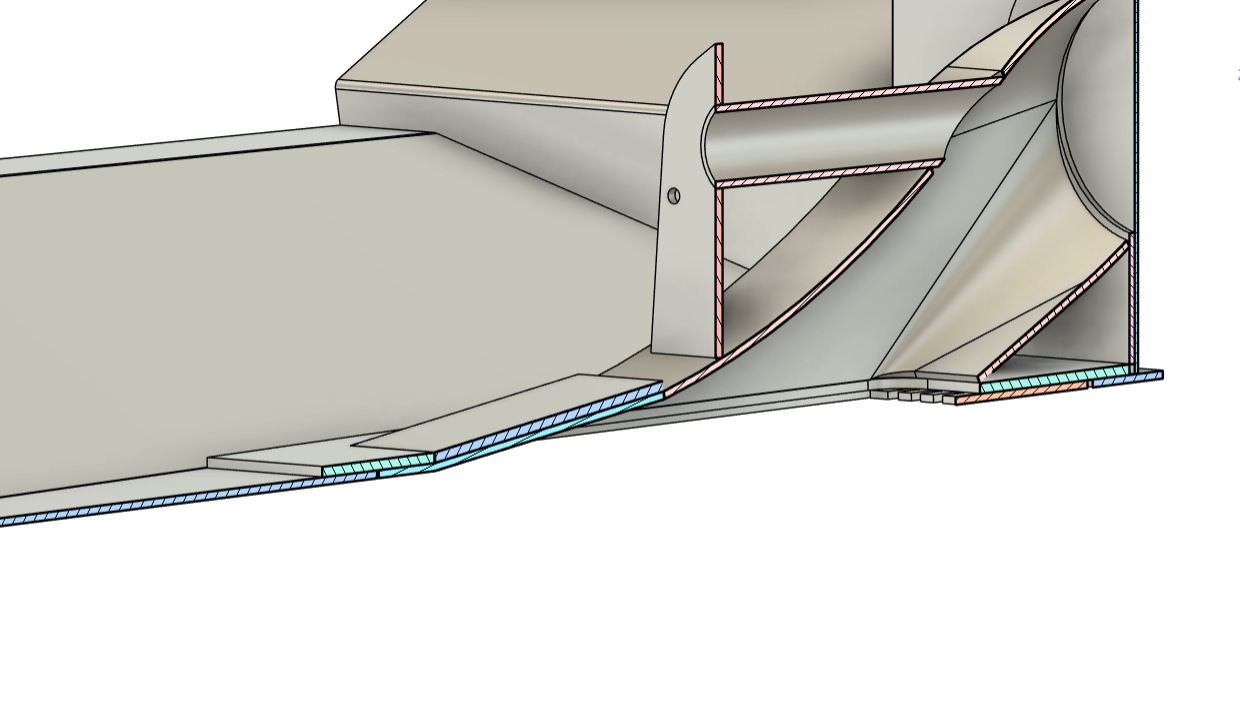

• Tangent lead ins/lead outs for optimal flow.

What’s Included

• All .dxf’s needed for cutting.

• Detailed assembly instructions.

• Bend info in the form of engineered .pdf drawings for all bend angles, and dimensions.
