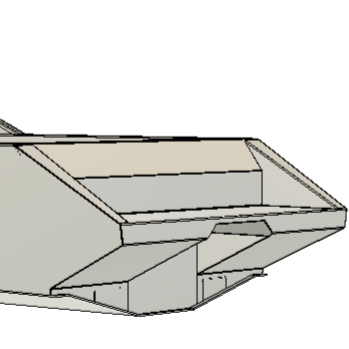

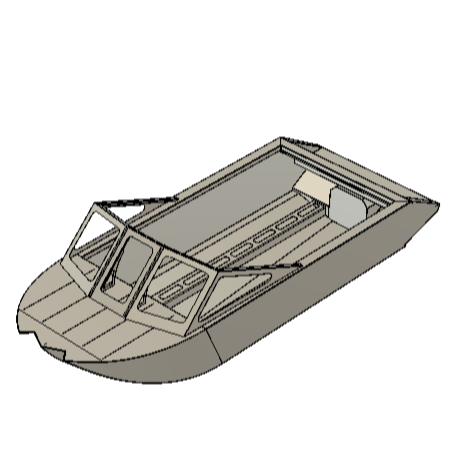

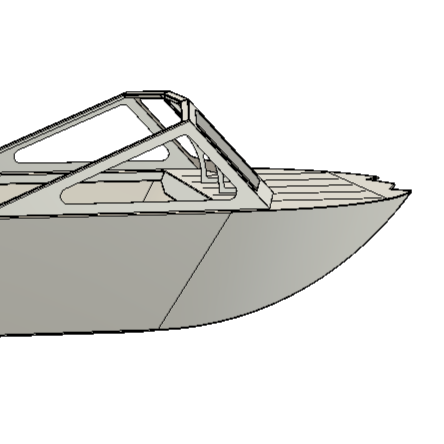

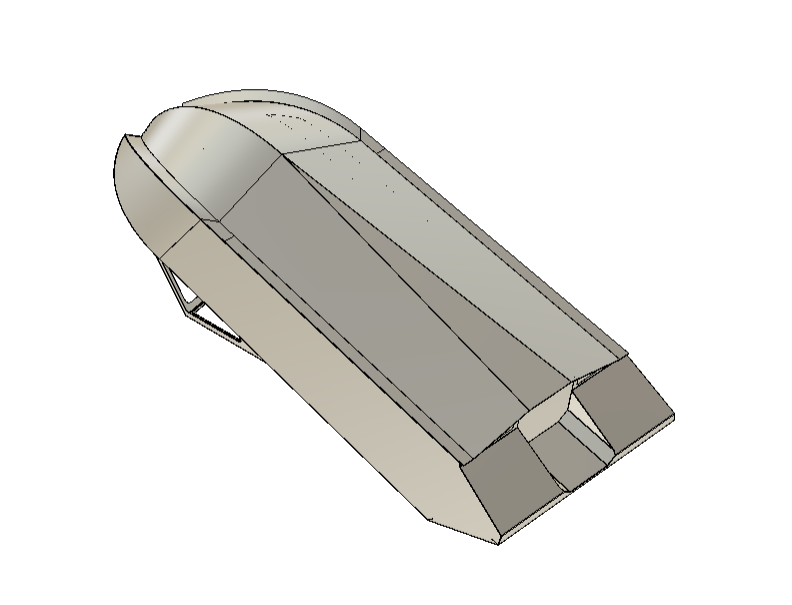

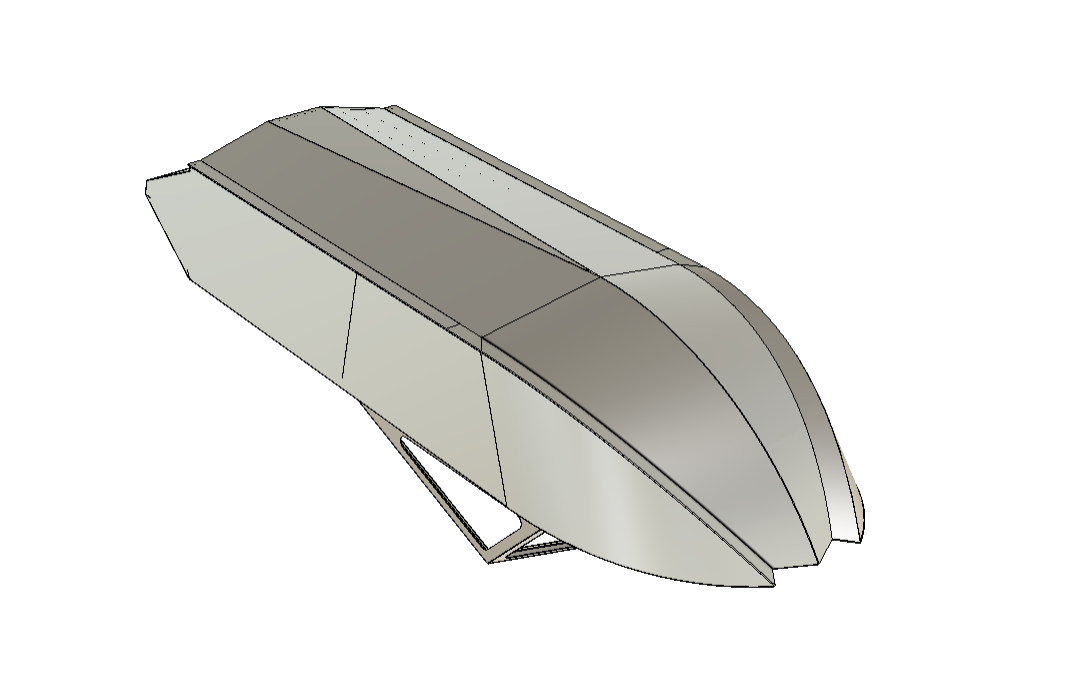

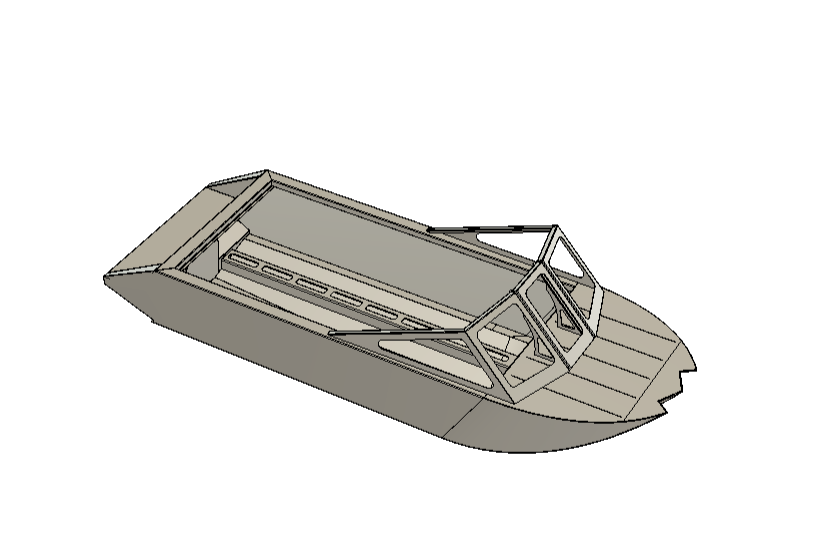

12.5’ Mini Jet boat cut and bend files.
All .dxf’s for hull construction with walk through windscreen included.
Extremely thorough hull assembly instructions with recommended rigging components, and parts checklist included.
Suitable for a wide variety of motor/pump combinations
Boat Specifications
12’6” From transom to nose.
13’10” Overall length
60” Beam
52” Bottom
15° Deadrise (Turns like it’s on rails)
30” Deep (Extra dry ride)
106” Of usable floor space from transom to dash.
Seats 5
What’s Included
All .dxf’s needed for cutting. (Assembly jigs included for ease of assembly)
Bend info in the form of engineered .pdf drawings for all bend angles, and dimensions.
Pre nested .dxf files. Toolpaths are the only thing needed to add.
Individual .dxf files if different size materials work better for your application and with layered bend lines for CNC bending info.
Parts checklist and part identifier diagrams
Detailed .pdf’s of all assembly steps.
Recommended rigging parts checklist, and part numbers for select parts.
Material requirements
1 - 5×14 .25 Aluminum Sheet (5083 or 5052)
1 - 5×10 .1875 Aluminum Sheet (5083 or 5052)
1 - 5×16 .125 Aluminum (5052)
1 - 4×16 .125 Aluminum (5052)
1 - 5×10 .125 Aluminum (5052)
