Midship Fuel Tank ( dxf files and cut plans only)

Midship Fuel tank Cut and Bend files.

• All .dxf’s for bulkhead, engine cover, floor, and rear bench seat included.

• Detailed assembly/bend instructions (.pdfs) and parts checklist included.

• McMaster Carr part numbers for fittings, and fuel filler neck material.

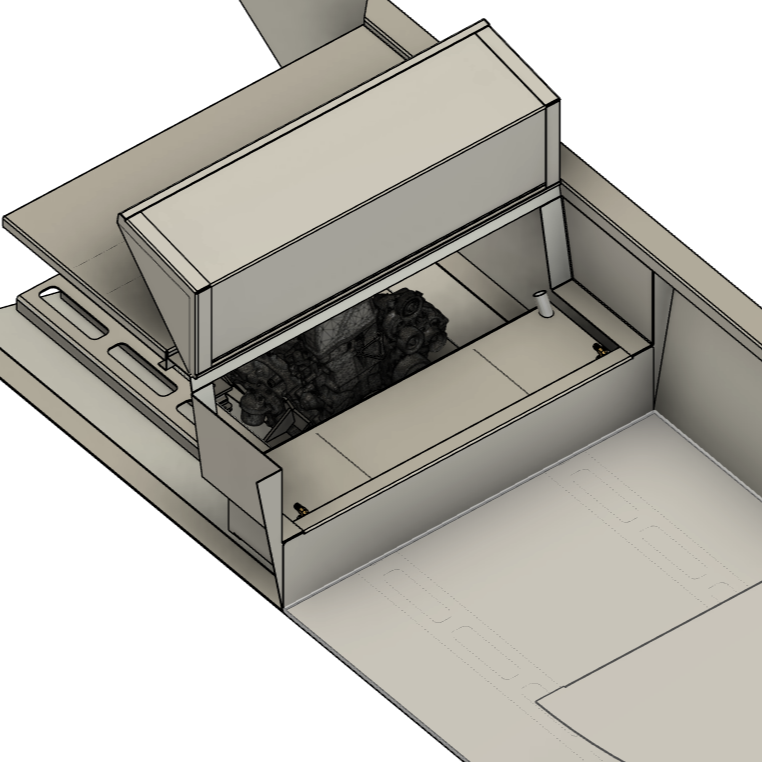

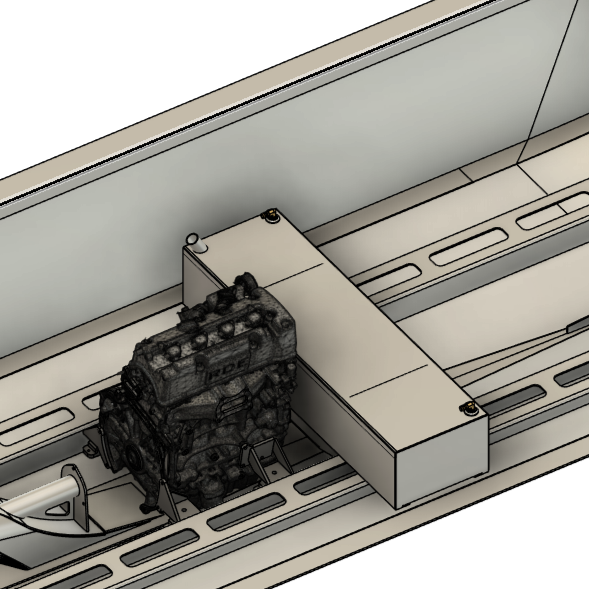

• Fits under the “5 Seat engine cover/bulkhead” hinged seat.

• Compatible with 11’, 12.5’, and 14’.

Specifications

• 25 Gallons

• .100 Construction

• 25 lbs empty.

• Reserve/sump.

• Dual baffles

What’s Included

• All .dxf’s needed for cutting. (Assembly jigs included for ease of assembly)

• Bend info in the form of engineered .pdf drawings for all bend angles, and dimensions.

• Pre nested .dxf files. Toolpaths are the only thing needed to add.

• Individual .dxf files if different size materials work better for your application and with layered bend lines for CNC bending info.

• Parts checklist and part identifier diagrams

• Detailed pdfs of all assembly steps.

  Material requirements

• 1 - 4×8 .100 AL (Approximately 50% of sheet)
