4 Seat Engine Cover and Floor ( dxf files and cut plans only

4 Seat Engine Cover and Floor Cut/Bend files

• All dxf’s for bulkhead, engine cover, floor, and rear bench seat included.

• Detailed assembly instructions (.pdfs) with and parts checklist included.

• Pre nested to merge onto leftover material of sheets from boat assembly.

• No extra material required, fits onto material listed for boat assembly

Specifications

• Seats 4

• 1/8” construction

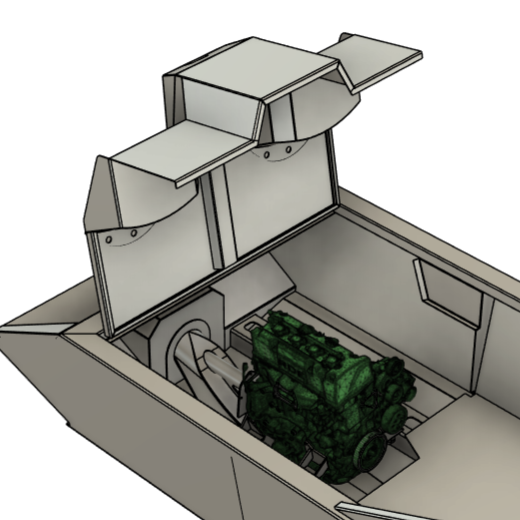

• Hinged for easy access to fuel tank and front of engine.

What’s Included

• All .dxf’s needed for cutting.

• Bend info in the form of engineered .pdf drawings for all bend angles, and dimensions.

• Pre nested .dxf files. Toolpaths are the only thing needed to add.

• Individual .dxf files if different size materials work better for your application and with layered bend lines for CNC bending info.

• Parts checklist and part identifier diagrams

• Detailed pdfs of all assembly steps.

  Material requirements

• No extra material required. This does change the size of 2 sheets from the boat assembly though.
